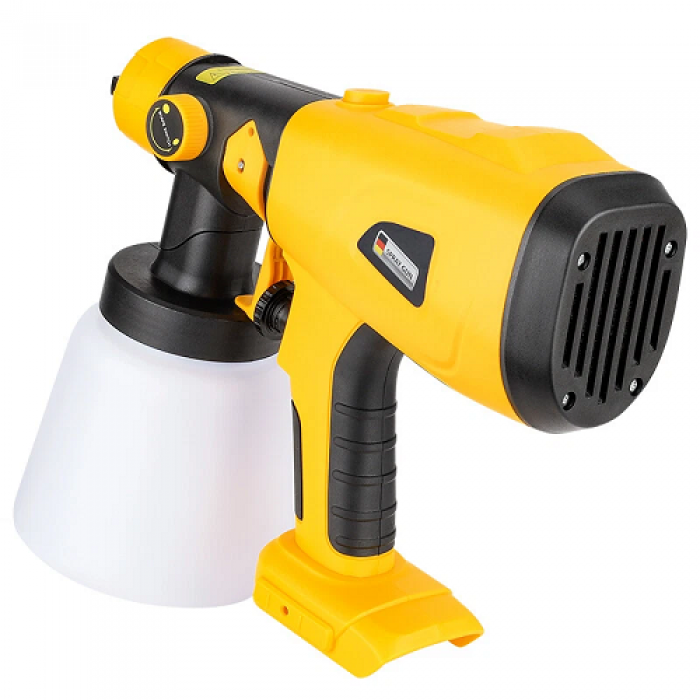

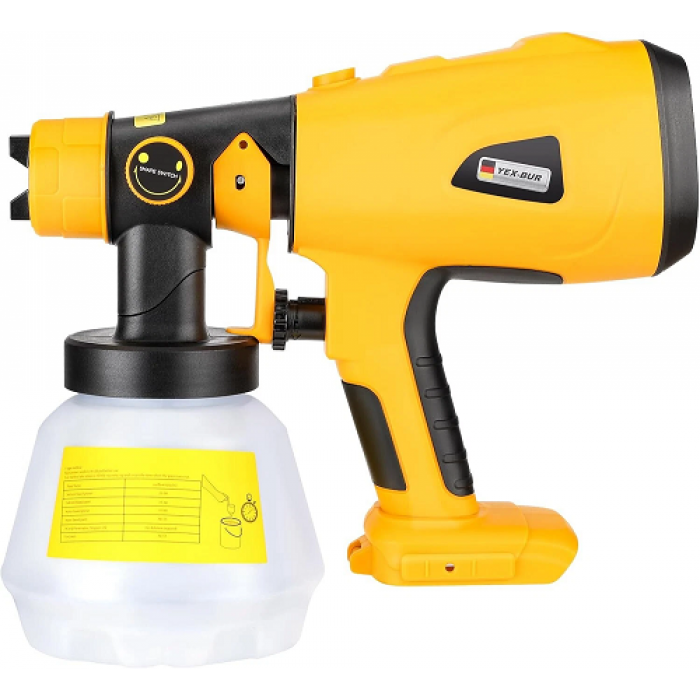

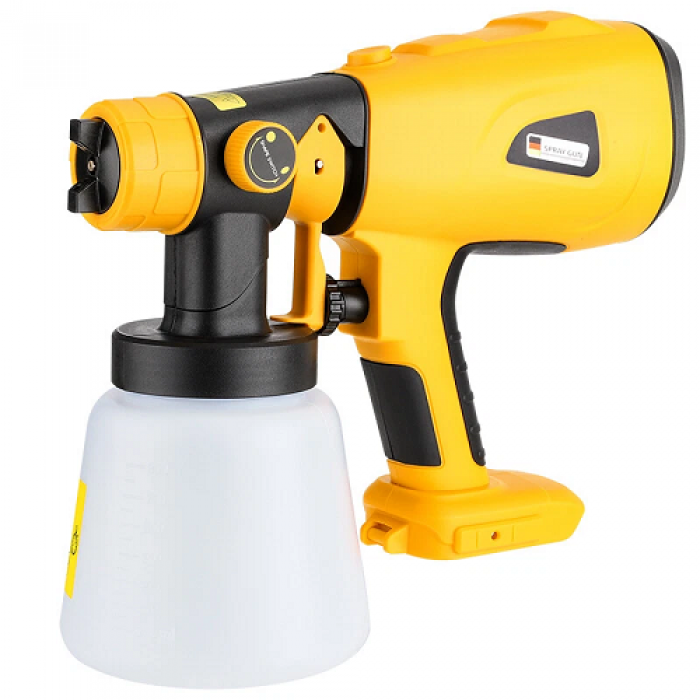

Cordless Paint Sprayer Compatible with Dewalt 20V Battery Handheld HVLP Spray Gun Easy to Spray for Furniture Fence Cars Walls DIY Works House Painting (Tool only)
Product Description
Please read this instruction manual carefully before using the tool.
Note: Paint primer needs to be diluted before use
Test method after diluted: fill the viscosity cup and count the time when the paint runs out.
Color: Yellow
Material: Plastic
Item Dimensions: LxWxH 10.9 x 3.74 x 9.13 inches
Power Source: Battery Powered
1. Specification:
Voltage: 20V MAX
Spraying distance: 8-10inch
Rated Speed: 42000rpm
Spray width: 8-12inch
Air flow: 160L/min
Viscosity：30-80Din-sec
Suitable for wall, fence, door, window, metal rust, ceiling
And used for car repairing, high-altitude operations, etc
2. Usage Method:
Paint primer needs to be diluted before use
Test method after dilution: fill the viscosity cup and count the time when the paint runs out.
(1) Solvent-based primer==outflow time 20-60S
(2)Solvent-based paint==outflow time 25-60S
(3)Water-based primer==outflow time 35-60S
(4)Water-based paint==outflow time 30-55S
(5)Car paint==outflow time 30-55S
(6)Wood Preservative, Stripper, Oil==No dilution required

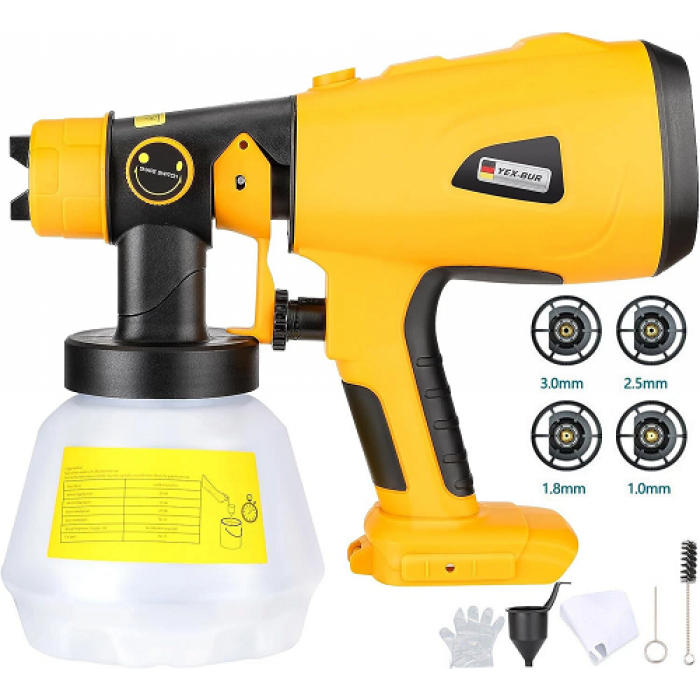

3. Packing List:
1* Paint Sprayer(Battery not included)

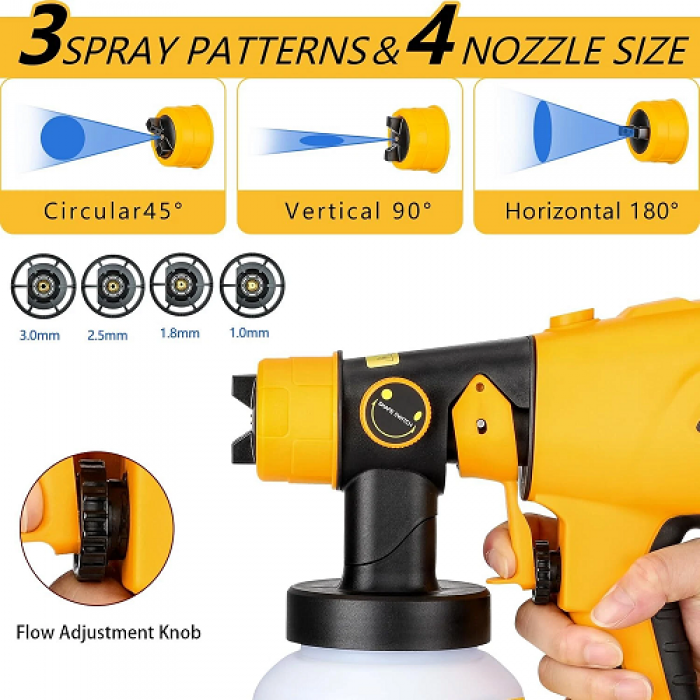

4 * Nozzles(1.0mm, 1.8mm, 2.5mm-has been installed on the machine, 3.0mm)
6 * Paint Filters
1* Viscosity Cup
1* Nozzle Cleaning Needle
1 * Cleaning Brush
1 * User Manual
